Direction change
L-shaped corners for 90-degree layouts and coordinated turns.
Modular connection geometry
Linear light junctions for direction, branching and grids.
Combine straight modules with L, T, X and cross junctions to organize continuous lighting around office plans and architectural circulation.
Send a Junction Layout
Node selection
Choose each junction by what the light path needs to do.
The project drawing defines where the light line continues, turns or branches. We review node type, orientation and adjacent module lengths as one connected layout.
Three-way branch
T junctions extend one line into a secondary direction.

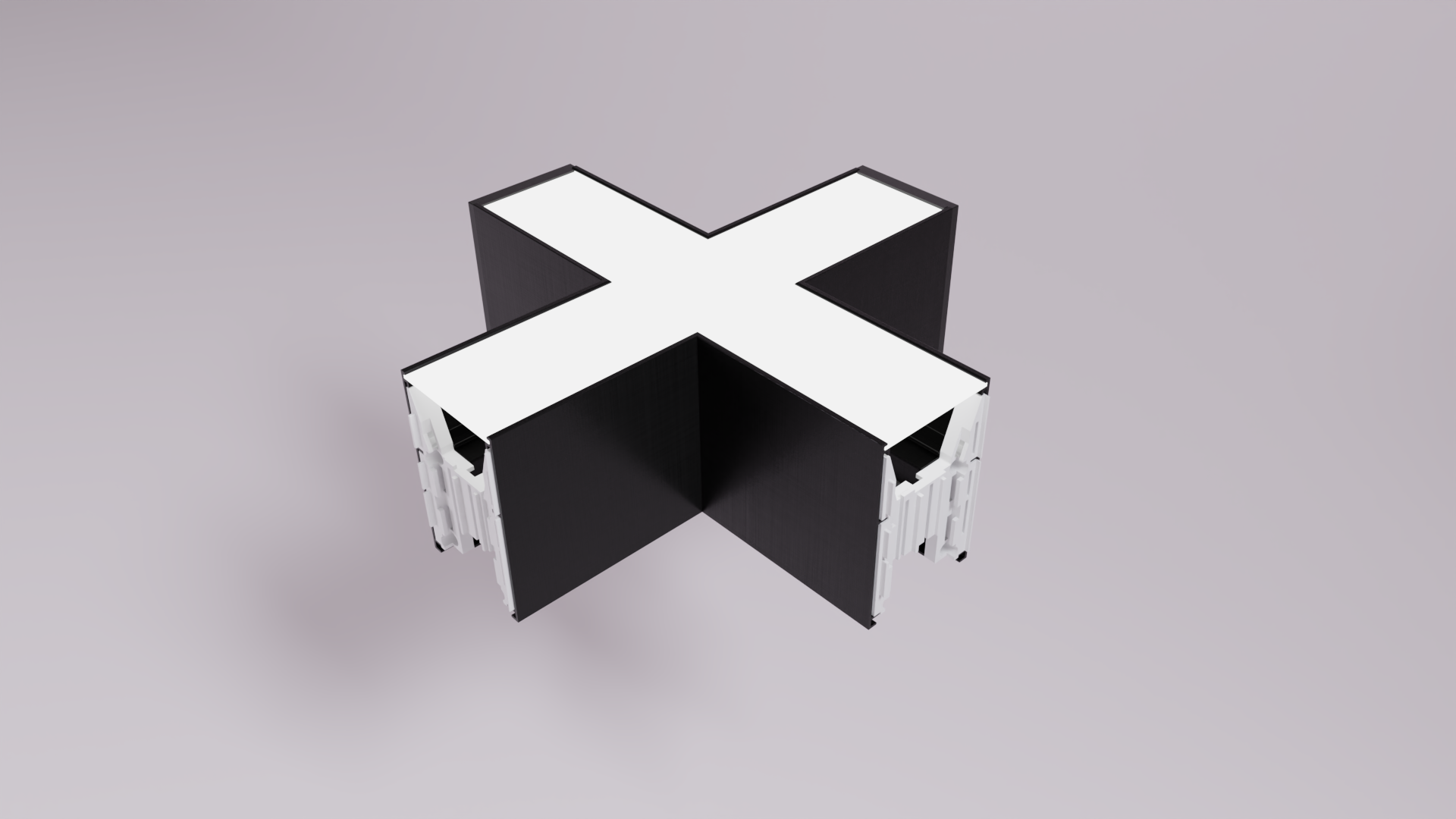

Four-way connection
X and cross configurations for grid and multi-directional layouts.
Coordination points
Node orientation matters as much as node type.
DrawingMark every turn, branch and endpoint
DimensionsConfirm centerlines and adjacent module lengths
InstallationCoordinate suspension or surface fixing at junctions
